CARVEsmart in Action

 Small Jaws for Small Parts!



Long Jaws for Long Parts!

smalljawssmallparts.jpg    longjawslongparts.jpg
Saw to any length extruded aluminum jaw stock holding four parts in two vises. The first vise is set up for two different jobs running simultaneously.    Extruded aluminum jaw stock is available in 31” and 94” lengths. Use one long jaw to tie all your stationary jaws together. Mill a step to square up your vises.

No Face Mounted Cap Screws



Quick Set Up

nofacemountedcapscrews.jpg    quicksetup.jpg
No cap screws allowing a narrower CARVEsmart jaw to hold the same part as a thicker cap screwed jaw, deeper into the sweet spot of the vise, without cap screw interference.    All twelve 6” soft jaws were change changed in in 8 minutes. A cutting tool carves the female forms in 5 minutes making them perfect to the spindle.

Save the Jaw Prep Program Not the Jaw



SMARTstop Relocation and Repeatability!‚Äč

savejawprepprogram.jpg    smartstoprelocationrepeatability.png
Change all 16 jaws without opening the vises in less than 10 minutes. Recutting the female form makes the set up perfect to the spindle without indicators and offsets.    Once carved jaws relocate +/-0.0003” when relocated in the same master jaw. Jaws can be moved in any opening and repeat within 0.001”.

 COMBOjaw with Dovetailed Part!



TALONgrip Jaws!

combojawwithdovetail.jpg    talongripjaws.jpg
A dovetailed part will maximize your holding above the centerline of the vise.    Dovetailed, quick change, edge gripping jaws.

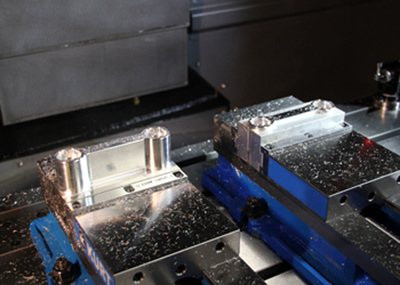

Op 1 and Op 2!



Quick Change uses Beyond Vises!

 op1op2.jpg   quickchangeusesbeyondvises.jpg
 Operation one on the left is using COMBOjaws on a dovetailed piece of material. This allows aggressive cuts to rough and stable finishing. Operation two in the second vise has carved female features to hold the part deep in to the sweet spot of the vise. One complete part is achieved for every cycle.   A SMARTstopped master jaw and jaw stock being used for quick changing fixtures in a laser.
